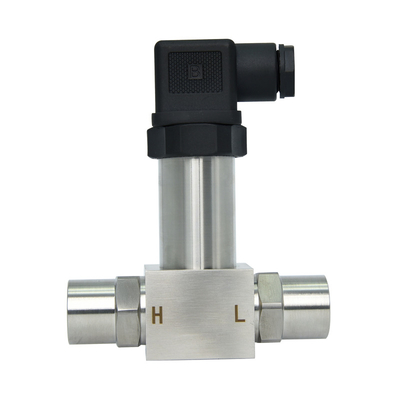

Medical / Aerodynamic / Hydraulic and Pneumatic Flow Gauge PT230 Pressure Transmitter Sensor with Universal Industrial 4-20mA Absolute Pressure Transmitter

2 Pieces
MOQ
$65.50(2 - 9 Pieces) $50.00(10 - 49 Pieces) $35.50(>=50 Pieces)
Prix
Medical / Aerodynamic / Hydraulic and Pneumatic Flow Gauge PT230 Pressure Transmitter Sensor with Universal Industrial 4-20mA Absolute Pressure Transmitter
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 1 year
Customized support: OEM
Model Number: PT230
Application: Medical/Aerodynamic/Hydraulic and pneumatic Flow measurement
Shipping Term: DHL Fedex TNT EMS UPS
Name: Differential Pressure Transmitter
Packaging: Original Box
Temp: -20~85 ℃
MOQ: 2Pcs
Sigal Output: 4~20mA,0~10V,0~5V,0~20mA
Enclosure protection class: Plug-in type(IP65); cable type(IP67)
Medium: The liquid or gas adapting to structural material
Range of power supply: 12~36V DC(generally 24V DC)
Certification: CE, RoHS
Informations de base
Certification: CE, RoHS
Model Number: PT230
Conditions de paiement et expédition
Description de produit
Products Show
Features: Compact design High cost performance Wide measuring range Optional field display
Discription:
PT230 series differential pressure transmitter is assembled with diffused silicon differential pressure core,The whole product is of all stainless steel structure,The two pressure interfaces are directly installed on the measuring pipeline or connected through the pressure pipe. Compact design makes it suitable for equipment matching, machinery manufacturing and other applications with narrow space, complete equipment design, etc. Suitable for differential pressure measurement of various gases and liquids.
Application: flow measurement Filter monitoring Hydraulic and pneumatic system machine manufacture
Product Paramenters
Pressure range
0～100kPa to 0～10MPa
Type of pressure
manometer pressure
measurement accuracy
Class 0.5, class 0.25
behaviour of electricity
Two wire system
Three-wire system 0 ~ 10v
Three-wire system
output signal
（4～20）mA
（0～10）V
（0～5）V
Power supply
9～36Vdc
15～36Vdc
12～36Vdc
insulance
500MΩ 100Vdc
Overload pressure
Twice the rated pressure
Bidirectional static pressure
5 times rated pressure
Working temperature
（-20～85）℃
the protection grades
IP65
Long term stability
0.2%FS/year
Company Profile
Application
Certifications
Exhibition
Transport
FAQ
Q: What is the warranty of your products?
A: 1 years from shipment date
Q: What is your shipping method?
A: Small orders are delivered with DHL, FedEx, TNT, UPS , EMS. Large orders are recommended to ship by sea or air.
Q: How long will you give me the reply?
A: We can support you 24Hours online service via email, skype, what’sapp, facebook etc within 1 hour.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer, committed to producing high accuracy, long-term stability, cost-efficient pressure/ level/ temperature/flow/ differential pressure measuring instruments.
Q: What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q: How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity and stock of your order.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q: Which countries have you exported to ?
A: So far, we have sold our products to many countries and regions.Such as Germany ( like Siemens), Sweden, Spain, USA, Australia,Saudi Arabia,UAE,Brazil,Indonesia,Malaysia,India,Russia,South Africa etc.
