Caractéristiques

Warranty: Depends on model

Customized support: OEM

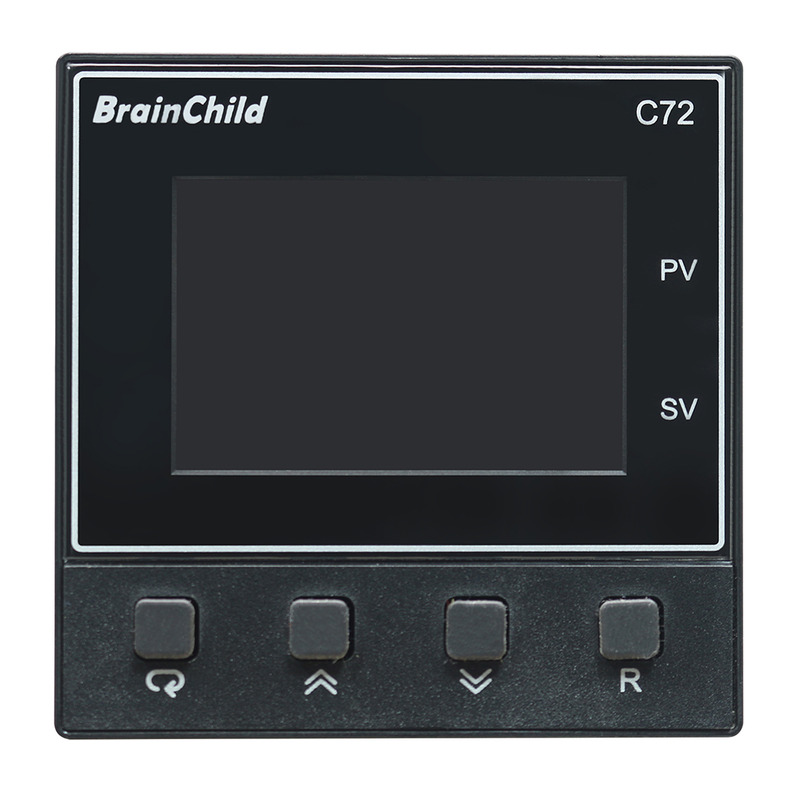

Model Number: C72

Informations de base

Model Number: C72

Conditions de paiement et expédition

Packaging Details: 50 UNITS/CTN

Description de produit

Type	Thermocouple(J,K,T,E,B,R,S,N,L,U,P,C,D),RTD(PT100(DIN),PT100(JIS)), Current(mA),Voltage(Volts)
Resolution	18 Bits
Sampling Rate	5 Times / Second (200msec)
Maximum Rating	2VDC minimum, 12VDC maximum
Temperature Effect	1.5µV /°C for all inputs except mA input, 3.0µV /°C for mA
Sensor Lead Resistance Effect Thermocouple	0.2 µV /Ω; 3-wire RTD: 2.6°C /Ω of Difference of Resistance of two leads 2-wire RTD: 2.6°C /Ω of Sum of Resistance of two leads
Burn-out Current	200mA
Common Mode Rejection Ratio(CMRR)	120 dB
Normal Mode Rejection Ratio (NMRR)	55dB
Range	3mA to 27mA, -1.3V to 11.5V
Remote Set Point	Option Available
Input Impedance Current	2.5Ω
Voltage	1.5MΩ
Sampling Rate	1.66 Times/Second
Current Input	Sensor Break Detection Below 1mA for 4-20mA input, below 0.25V for 1 - 5V input, not available for other inputs Sensor Break Responding Time 0.1 Seconds
Event Input	No. of Event Inputs 2 Logic Low -10V minimum, 0.8V maximum. Logic High 2V minimum, 10V maximum Functions See availability table in user manual
